Author: glasmed

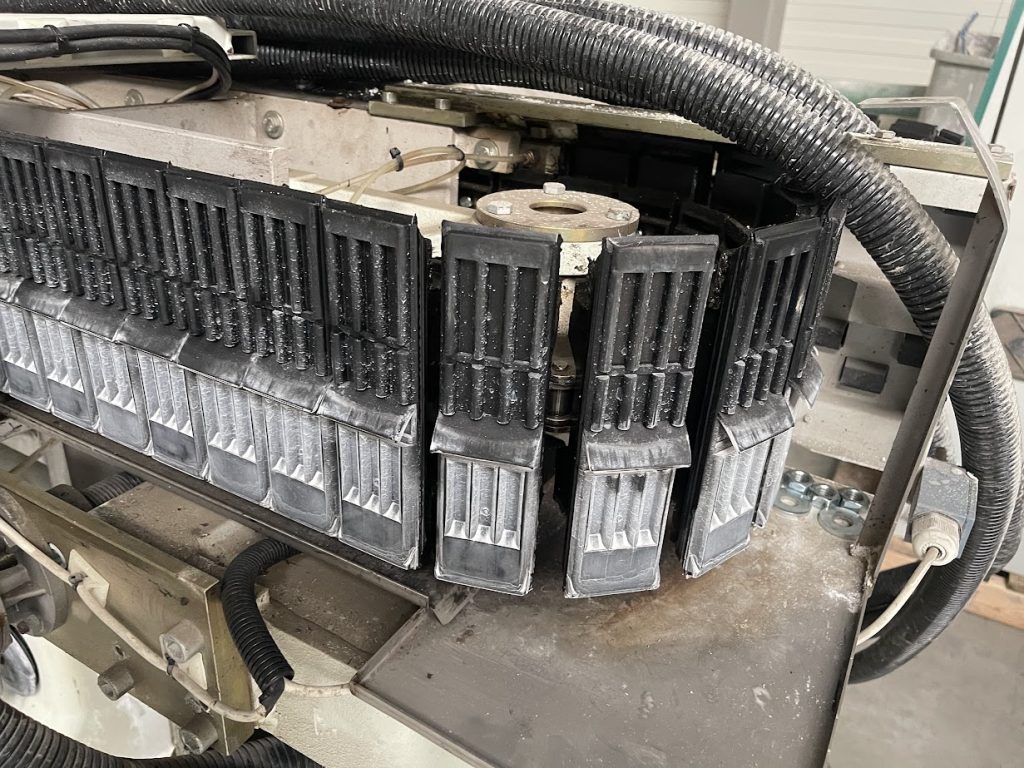

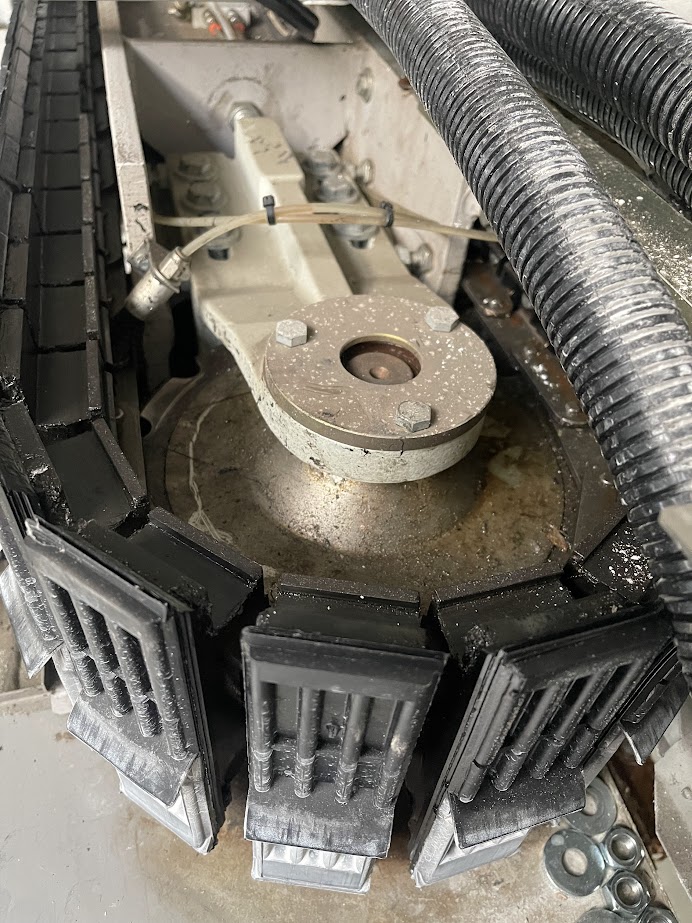

Masina de slefuit si fazetat nerectangular forme Zanetti tip Bismatic 2

Posted on by glasmed
  • Masina de slefuit si fazetat nerectangular forme Zanetti tip Bismatic 2
  • Statie cu pompa vacuum
  • Suport pentru slefuire piese mici
  • Dimensiune geam prelucrabila 100-2050 mm
  • Grosime geam 3-25 mm
  • Fazeta realizabila 50 mm la maxim 45 grade
  • Putere instalata 3,5 KW
  • Necesar spatiu 3000×3000 mm

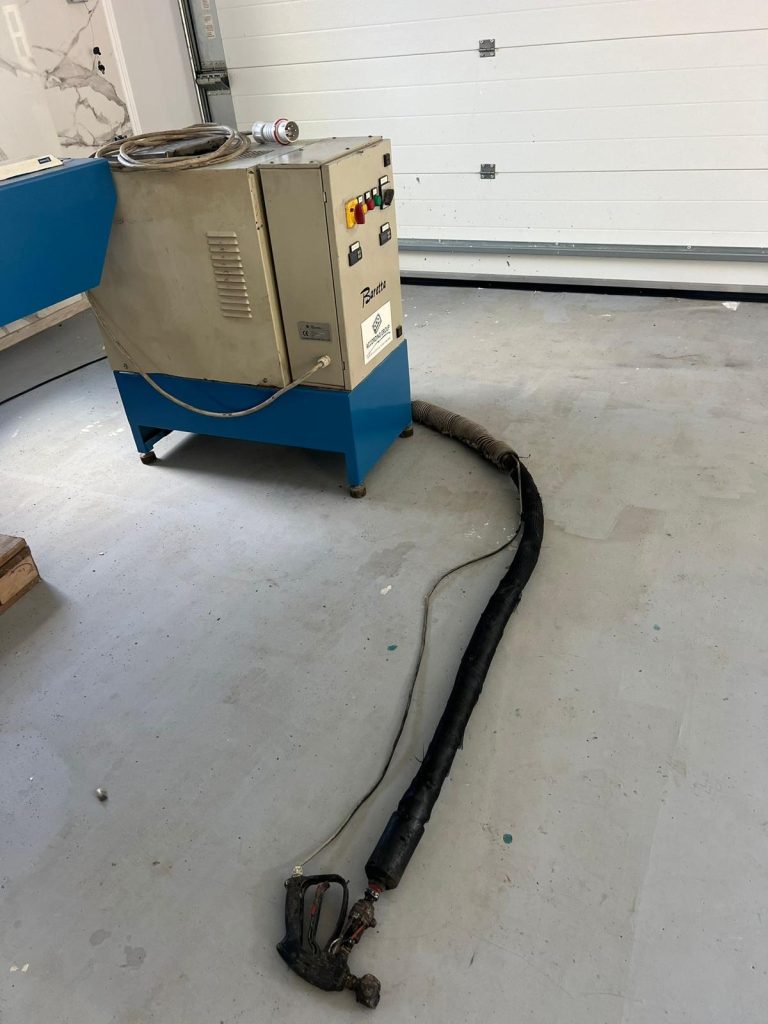

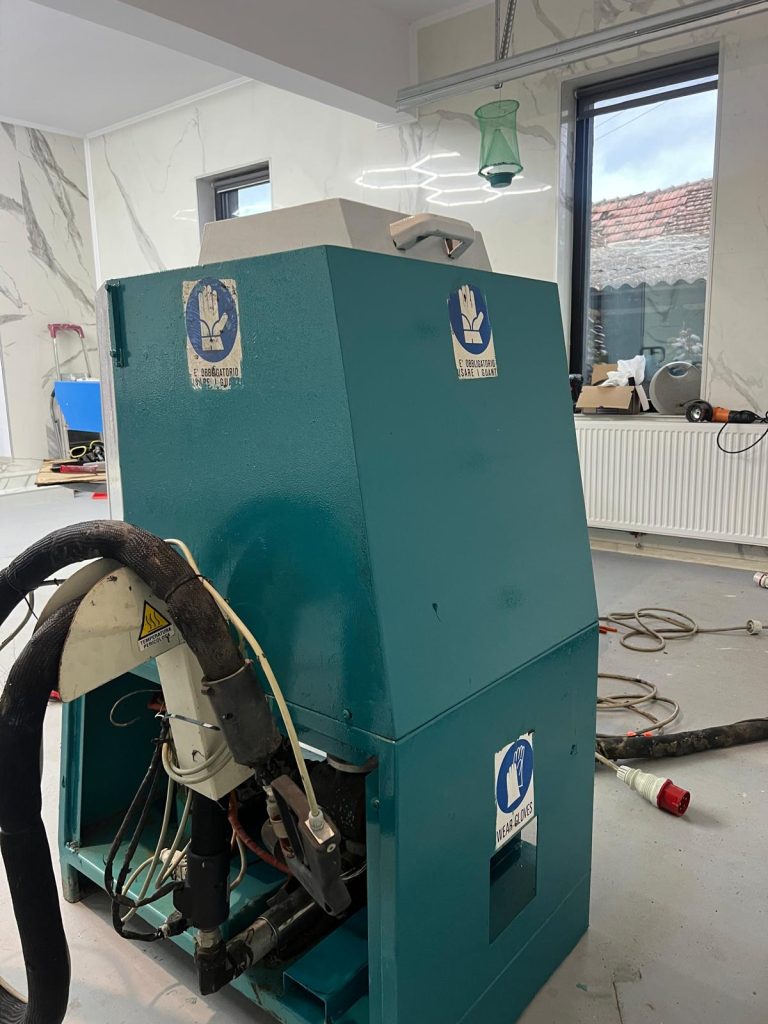

Utilaj bicomponent HDT german model PRO 6EASY

Posted on by glasmed
  • Utilaj bicomponent HDT german model PRO 6EASY
  • Technical Data
    Output Approx. 5500 g/min (PU)
    Electrics 3 x 400V/N/PE 50Hz Fuse 16A, CEE Connection 16A
    Pneumatics 4 – 8 bar 3/8″
    Measurements Ø 1.240 x 2.400 mm
    Weight ca. 750 kg
    Construction mobile
    Output control Completely variable
  • Standard Features
  • Accuracy of new pump generation with long stroke results in highest maximum ratio
  • Control Panel always visible
  • Mobile Frame
  • Variable mixing ratio
  • Roller for ease of barrel change
  • One hand mixing ratio control
  • Two hand safety operation
  • Heated follower plate (Base) (PU/ PS)
  • Potlife control
  • “Barrel empty” control
  • Boom arm 2500 mm long with pneumatic support
  • Automatic switch off at excess pressure or lack of material
  • Follower plate designed for minimal rest quantity in barrel
  • Complete mixing system
  • Click aici pentru date tehnice EN

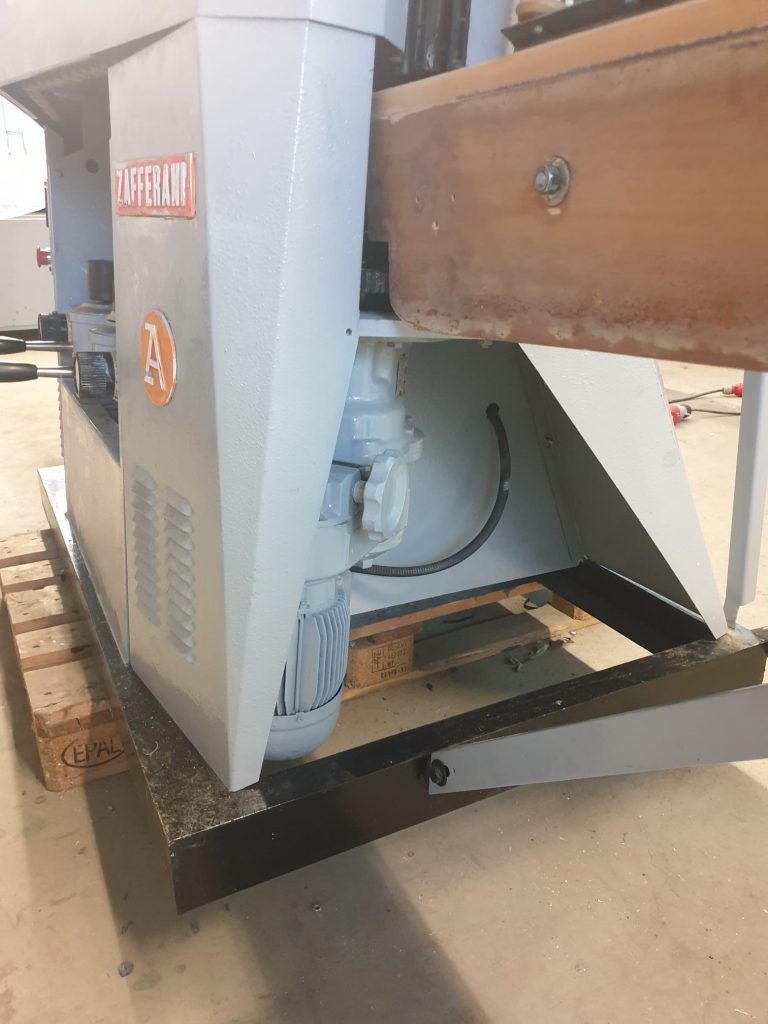

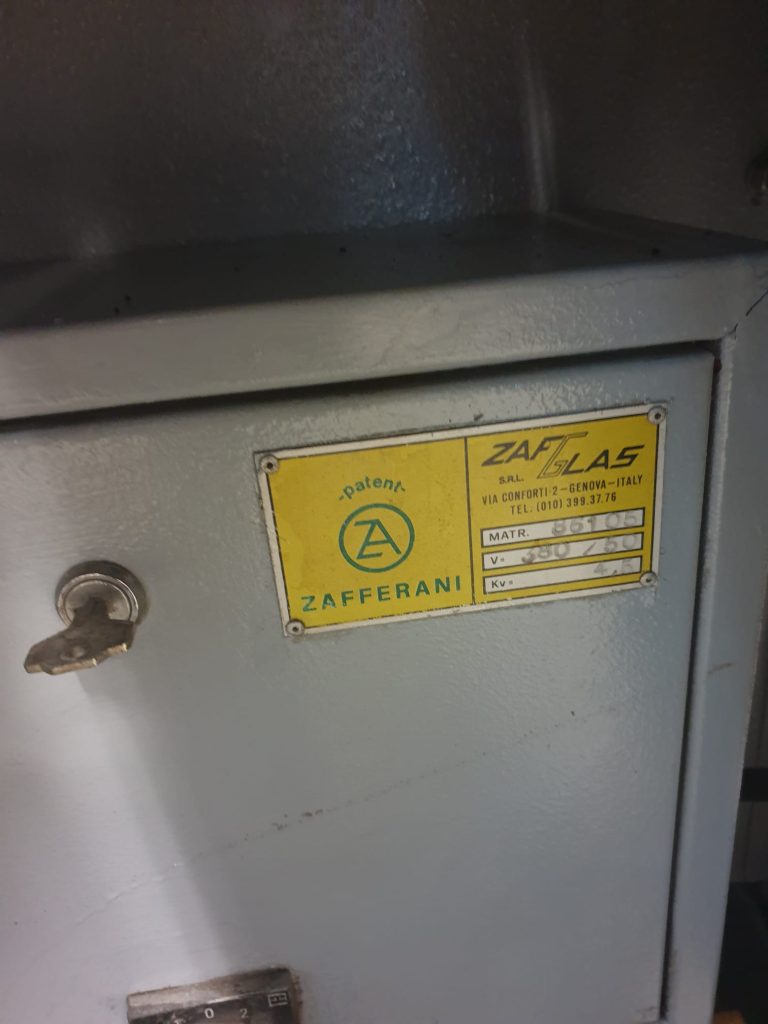

Masina de slefuit si lustruit cu 4 motoare, posturi, Zafferani-Italia Tip FP4

Posted on by glasmed
  • Masina de slefuit si lustruit cu 4 motoare, posturi, Zafferani-Italia Tip FP4
  • Cu 4 motoare, discuri
  • Slefuieste si lustruieste MCM muchie-cant-muchie
  • Grosime geam 3-12 mm
  • Viteza de lucru 0,5-4,5 ml/minut
  • Cu rezervor de apa si pompa
  • Putere instalata 4,5 KW
  • Aer Comprima 6 Bar
  • Dimensiune maxima geam, oglinda 2000×2500 mm
  • Stare foarte buna

Utilaj de ridicat, manipulat geam Tgt-Teupen

Posted on by glasmed
  • Utilaj de ridicat, manipulat geam Tgt-Teupen
  • Producator german: Tgt-Teupen, www.tgt-teupen.de
  • Oferta utilaj robot de prins, manipulat geam, RoboCrane 1400-portanta 1400 kg impreuna cu manipulator integrat 600 kg, tip Spider, senilat
  • Specificatie tehnica
  • Robo Crane 1400 Tgt-Teupen cu senile,tip Spider
  • TGT Teupen Portofolio
  • Lungimea max. a extensiei: cca.10,0m: inaltime ridicare
  • Acoperire laterala cca.7,5 m
  • Zona de rotatie 355°
  • Viteza funiei cca. 0-12 m/min
  • Sarcina maxima de ridicare ca. 1400 kg
  • Lungime constructie cca. 3000 mm
  • Lungime constructie cu brat articulat: cca. 4900 mm
  • Latime constructie min. 780 mm
  • Inaltime constructie min. 1980 mm
  • Greutate totala ca. 2000 kg
  • Suprafata de sprijin 2,92 m x 3,92 m
  • Sarcina de incarcare in pozitia standard de lucru: cca. 1,9 kN/m2
  • Presiunea la sol la conducere cca. 5,52 N/cm2
  • Lantul energetic intern
  • Actionare motor Honda 13 PS
  • Șasiu reglabil 780-980 mm
  • Abilitate de urcare inainte: cca. 36%
  • Latimea lantului ca. 0.20 m
  • Telecomanda radio
  • Viteza de conducere ca. 1,5 km / h
  • Actionare suplimentara Motor AC 380, 4,0 KW 16 A, CU FLYJIB
  • Impreuna, integrat cu:
  • Manipulator, cu sistem de aspirare/ventuze 600 kg portanta.
  • Manipulator cu ventuze integrate electic care prinde,invarte,rabateaza ,indeparteaza geamurile electric actionat de telecomanda, portanta 600 kg
  • Sistemul cu ventuze Vaccu Power de prindere, manipulare cu acumulatori cu 2 circuite, conform EN 13155
  • Ventuzele TGT-12V, cu aspiratie sistem 150K
  • Cantitate ventuze 6-8buc
  • Sistem de vid 12V cu rezervor
  • Dotat cu extensie bilaterala 125 K
  • Dotat cu acumulatori, incarcabili cu afisaj tensiune
  • Se roteste electric la 360 grade
  • Se inclina, rabateaza electric la 90 grade
  • Dimensiune 1050x790x210 mm, cu extensie 2200x790x210 mm
  • Click aici pentru date tehnice
  • Click aici pentru date tehnice DE
  • Specificatie tehnica engleza
  • Our TGT RoboCrane 1400 is “two in one” Crane and glass manipulator. Equipped with a manipulator the TGT RoboCrane 1400 can rotate, tilt, move side-ways and telescope large and heavy glasses or elements to a height of nearly 10 m. The millimeter-accurate put in of elements and glasses is thereby effortlessly to do with the wireless remote.
  • TGT RoboCrane 1400 installed on a crawler chassis
  • Max. Extension length: ca.10,0m
  • Lateral range app. 7,5 m
  • Range of rotation 355°
  • Line speed app. 0-12 m/min.
  • Max. Load ca. 1400 kg
  • Overall length 3000 mm
  • Length with buckling arm: 4900 mm
  • Width min. 78 mm
  • Height min. 1980 mm
  • Total weight app. 2000 kg
  • Lateral range ca.7,5 m
  • Rotation range 355°
  • Support surface 2.92 m x 3.92 m
  • Point load 1,9kN / m2
  • Ground pressure in traveling condition: about 5.52 N / cm2
  • Energy transmission chain: Inner lying
  • Drive: Honda engine 13 hp
  • Chassis adjustably 780-980 mm
  • Climbing capability forward about 36%
  • Track width approx . 0,2 m
  • Driving speed: approx 1.5 km / h
  • Additional drive: 380 AC motor 4.0 KW 16 A
  • TGT backing plates
  • 4 plates Polysthon
  • TGT rubber track
  • White, non-abrasive 2 pieces
  • Additional arm max. 2 m
  • Flyjib max. payload 1200 kg
  • Manipulator
  • Include suxtion unit 600 kg

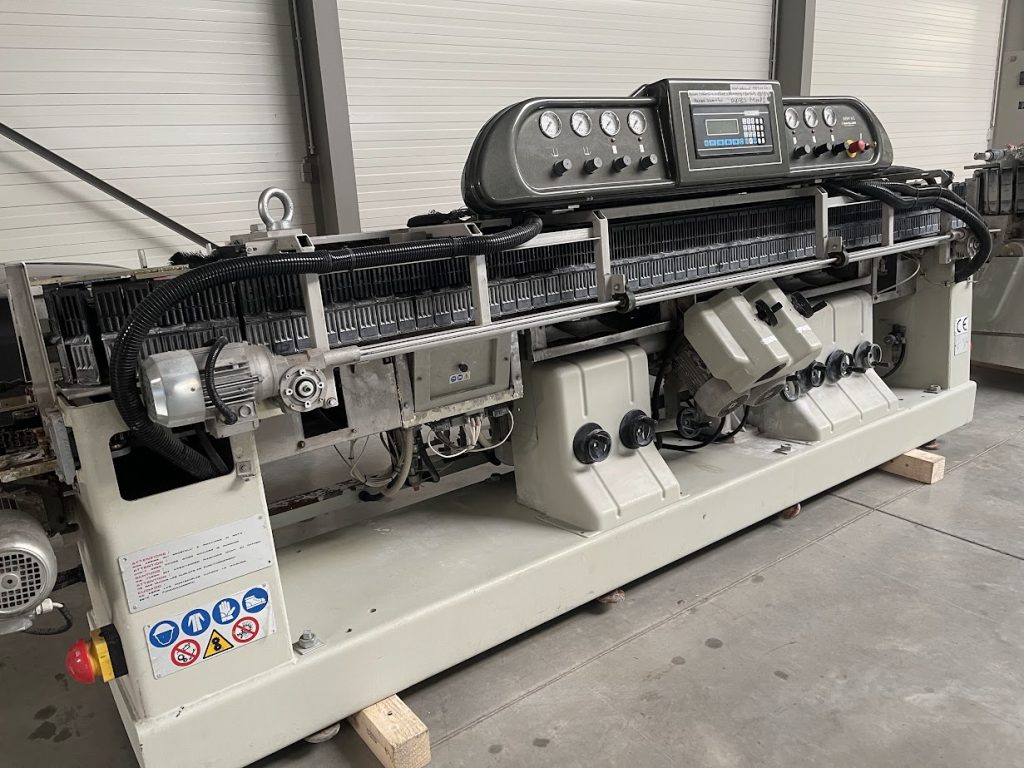

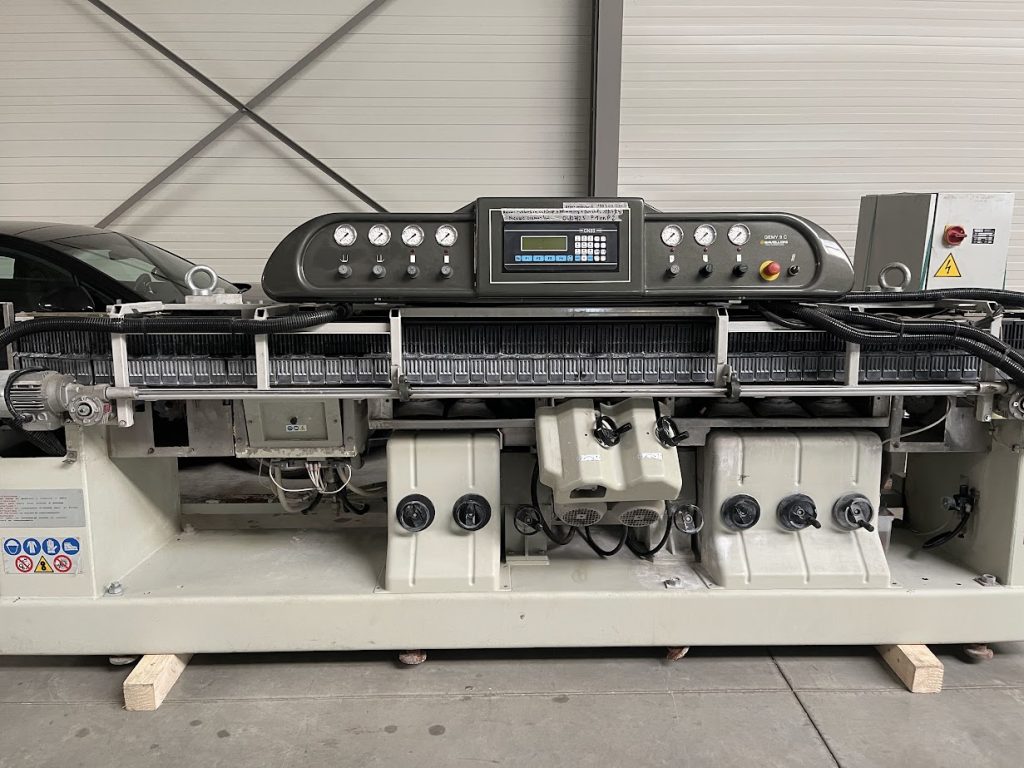

Masina de fazetat liniara Bottero 907 P

Posted on by glasmed
  • Masina de fazetat liniara Bottero 907 P
  • An 2003
  • Cu 7 posturi, motoare
  • Masina slefuieste cantul remanent
  • Grosime geam si oglinda 3-12 mm
  • Viteza de lucru 0,4-4 ml/minut
  • Poate fazeta cu latimea pana la 30 mm
  • Inclinatia de 3-45 grade
  • Putere instalata 23,5 KW
  • Dimensiune 7600x1800x2700 mm
  • Stare buna de lucru



Masina de spalat vertical Metall Glass 1800

Posted on by glasmed
  • Masina de spalat vertical Metall Glass 1800
  • Producator Metall Glass Ungaria
  • An 2018
  • Inaltimea de lucru 1800
  • Dimensiune minima de spalare geam 350×158 mm
  • Dimensiune maxima de spalare geam 1800×2500 mm
  • Grosime geam 3-12 mm
  • Viteza de lucru 0,5-4,5 ml/minut
  • Are 6 perii
  • Periile frontale moi,low-3 bucati
  • Diametrul periilor 95 mm
  • Putere instalata 11 KW
  • Conveior de intrare
  • Conveior de iesire iluminat
  • Contine sectiuniile:
  • Spalat
  • Clatit
  • Uscat
  • In zona de uscat ventilator cu protectie fonica
  • Dimensiune utilaj 7220x950x2550 mm
  • Greutate 650 kg
  • Stare foarte buna lucru
