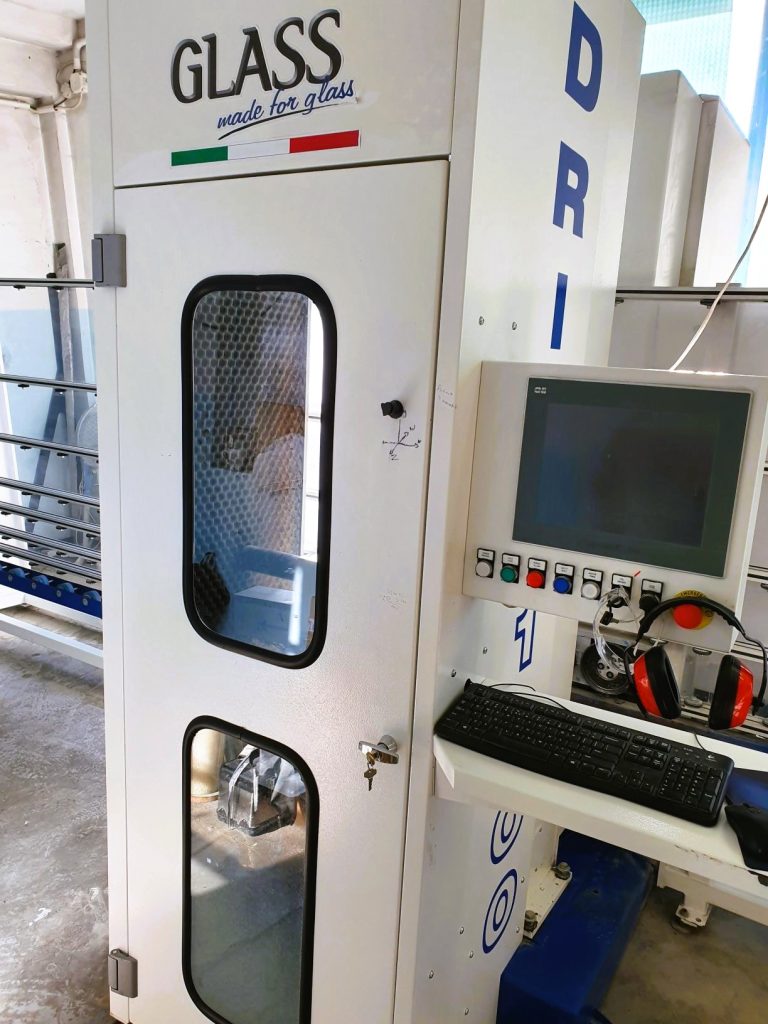

- Centru CNC pe 5 axe vertical Skill Glass-Italia Tip 1600 FF pentru gaurit, decupat
- An 2016
- Drill 1600FF
- Drill 1600FF is a 5-axis CNC drilling machine designed for producing holes, inserts and countersinks on rectangular flat sheet glass with a thickness of 3-20 mm. The machine is composed of five axes, X Y V Z W, and two electro-spindles which, as opposite drilling heads, create a double-sided drilling system that drills perfect holes.
- KEY BENEFITS
- Drilling with opposing heads
- Milling with a 4 kW electrospindle

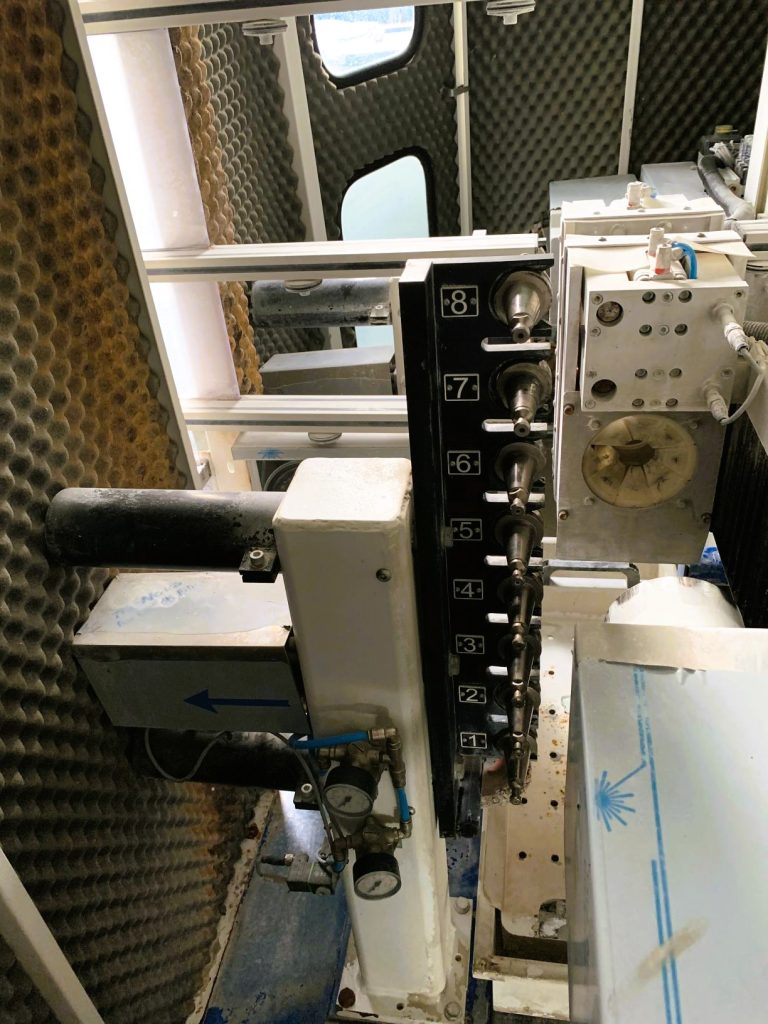

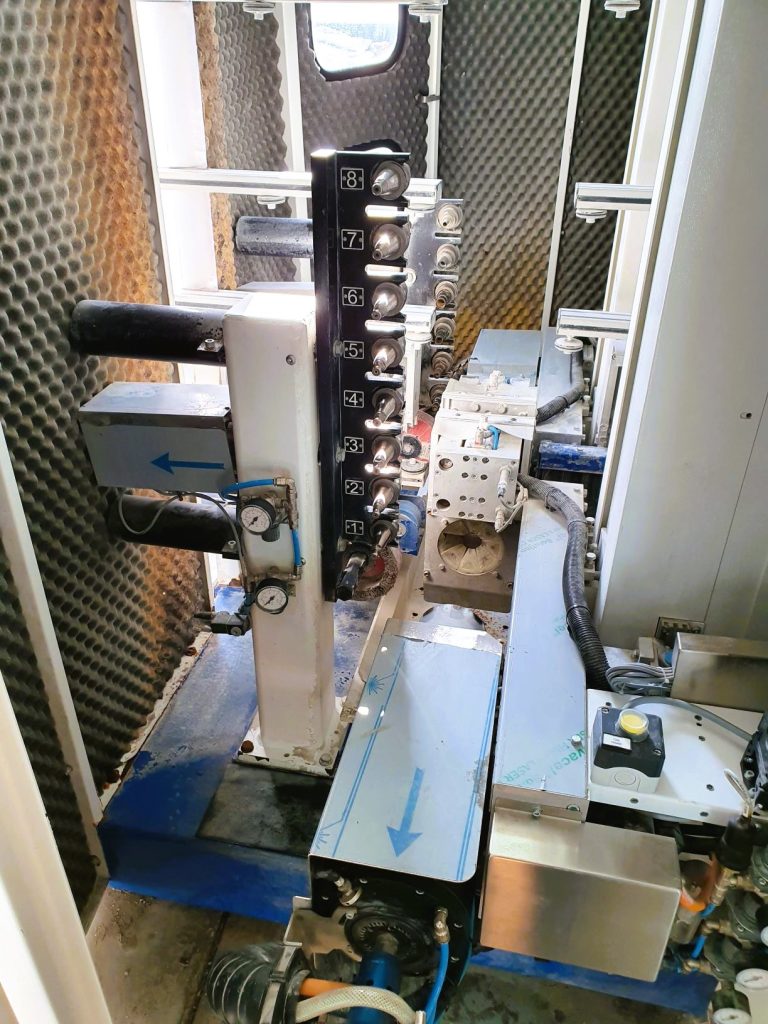

- Automatic tool changer in 12+12 positions
- Maximum precision and speed
- Vibration-free and long service life
- Minimal maintenance
- Uptake and handling system for glass by a pneumatic pliers
- 5-axis numerical control
- Drill 1600FF 3200 x 1600
- Machine dimensions with rollers (other on request)
L 8810 mm
l 2400 mm
h 2570 mm - Min. size of glass worked 500 x 150 mm
- Max. size of glass worke 3200 x 1600 mm
- Min. thickness of glass worked 3 mm
- Spessore massimo del vetro ammesso
- Max. thickness of glass worked
- Zulässige maximale Glasdicke 20 mm
- Height of work level (others on request) 500 mm
- Forward work speed 0 – 20 m/min.
- Electrical power supply (others on request) 400 V 50 Hz
- Total installed power of machine system 12 kW
- Rated power of spindle. N° 2 of 4+3 kW (5,3+4 HP)
- Spindle speed with internal cooling of the tool 0-6.000/10.000 rpm

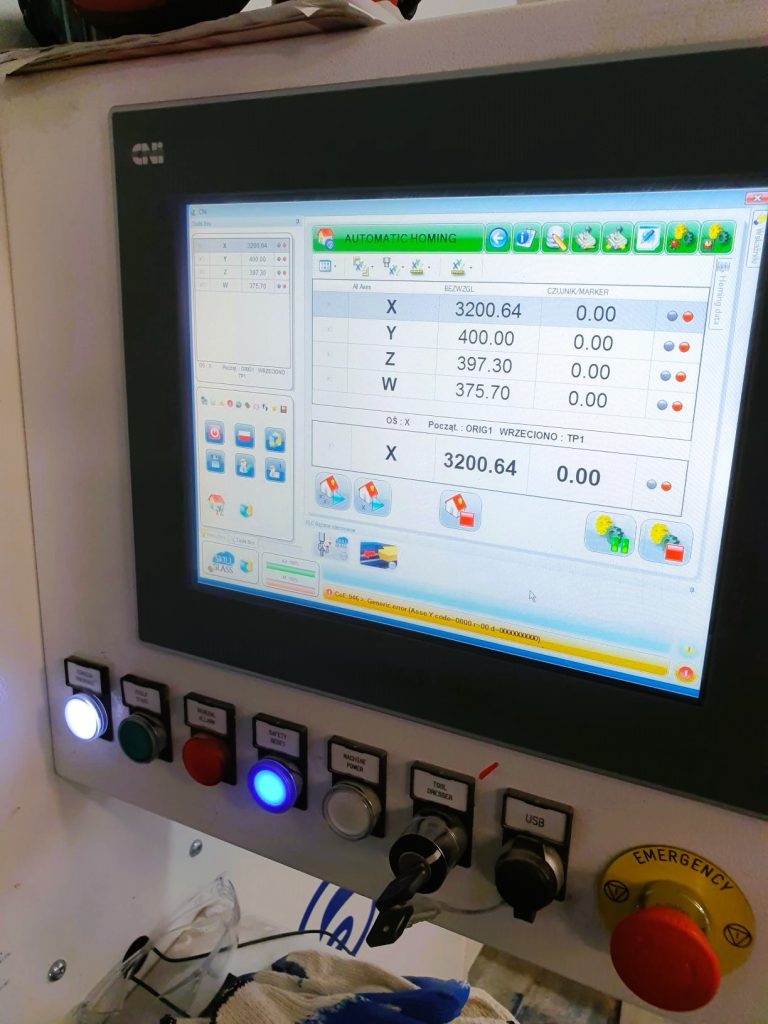

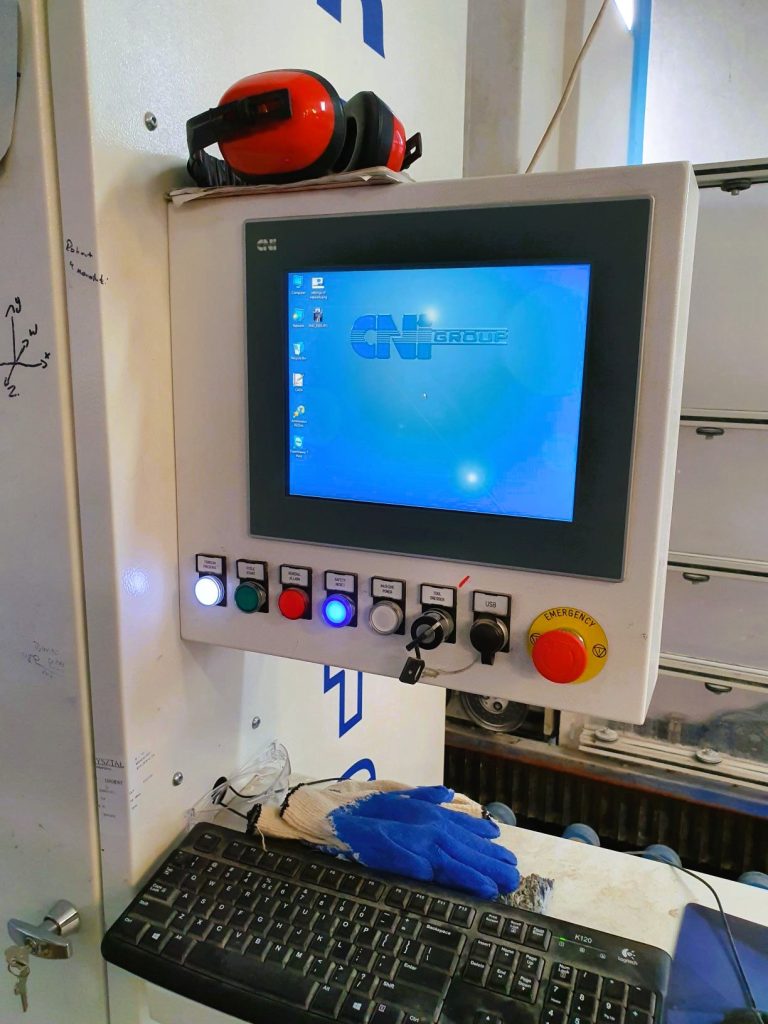

- Numeric Control 5 Axes
- N. of automatic change tool slots 12 + 1
