Utilaj de ridicat, manipulat geam Tgt-Teupen

COD PRODUS: GLASM-0350
  • Utilaj de ridicat, manipulat geam Tgt-Teupen
  • Producator german: Tgt-Teupen, www.tgt-teupen.de
  • Oferta utilaj robot de prins, manipulat geam, RoboCrane 1400-portanta 1400 kg impreuna cu manipulator integrat 600 kg, tip Spider, senilat
  • Specificatie tehnica

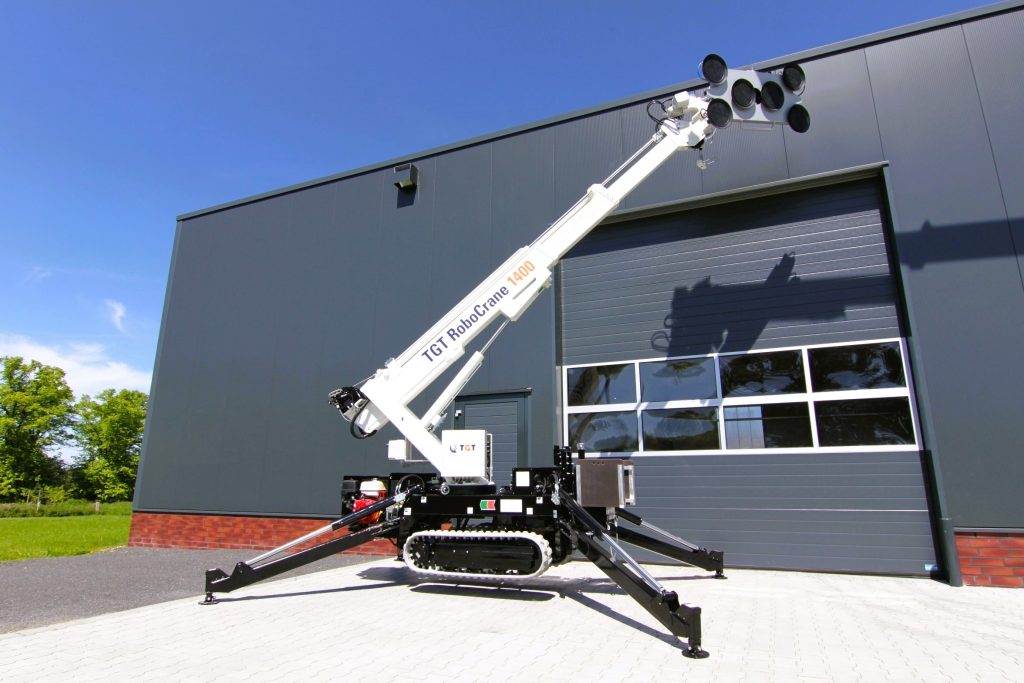

  • Robo Crane 1400 Tgt-Teupen cu senile,tip Spider
  • TGT Teupen Portofolio
  • Lungimea max. a extensiei: cca.10,0m: inaltime ridicare
  • Acoperire laterala cca.7,5 m
  • Zona de rotatie 355°
  • Viteza funiei cca. 0-12 m/min
  • Sarcina maxima de ridicare ca. 1400 kg
  • Lungime constructie cca. 3000 mm
  • Lungime constructie cu brat articulat: cca. 4900 mm
  • Latime constructie min. 780 mm
  • Inaltime constructie min. 1980 mm
  • Greutate totala ca. 2000 kg
  • Suprafata de sprijin 2,92 m x 3,92 m
  • Sarcina de incarcare in pozitia standard de lucru: cca. 1,9 kN/m2
  • Presiunea la sol la conducere cca. 5,52 N/cm2
  • Lantul energetic intern
  • Actionare motor Honda 13 PS
  • Șasiu reglabil 780-980 mm
  • Abilitate de urcare inainte: cca. 36%
  • Latimea lantului ca. 0.20 m
  • Telecomanda radio
  • Viteza de conducere ca. 1,5 km / h
  • Actionare suplimentara Motor AC 380, 4,0 KW 16 A, CU FLYJIB
  • Impreuna, integrat cu:

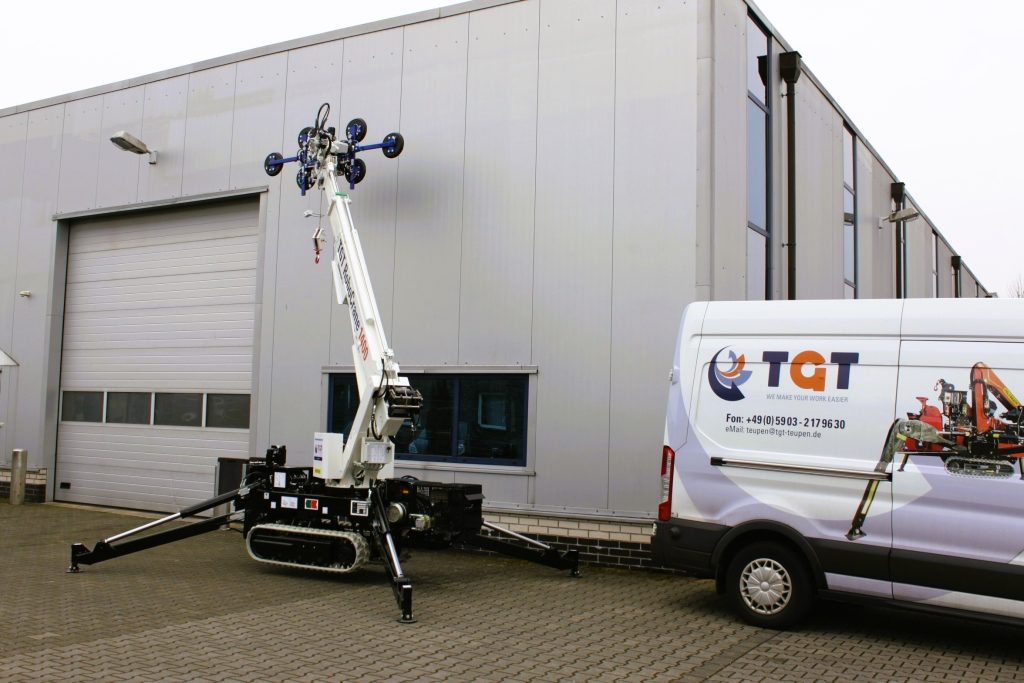

  • Manipulator, cu sistem de aspirare/ventuze 600 kg portanta.
  • Manipulator cu ventuze integrate electic care prinde,invarte,rabateaza ,indeparteaza geamurile electric actionat de telecomanda, portanta 600 kg
  • Sistemul cu ventuze Vaccu Power de prindere, manipulare cu acumulatori cu 2 circuite, conform EN 13155
  • Ventuzele TGT-12V, cu aspiratie sistem 150K
  • Cantitate ventuze 6-8buc
  • Sistem de vid 12V cu rezervor
  • Dotat cu extensie bilaterala 125 K
  • Dotat cu acumulatori, incarcabili cu afisaj tensiune
  • Se roteste electric la 360 grade
  • Se inclina, rabateaza electric la 90 grade
  • Dimensiune 1050x790x210 mm, cu extensie 2200x790x210 mm
  • Click aici pentru date tehnice
  • Click aici pentru date tehnice DE
  • Specificatie tehnica engleza

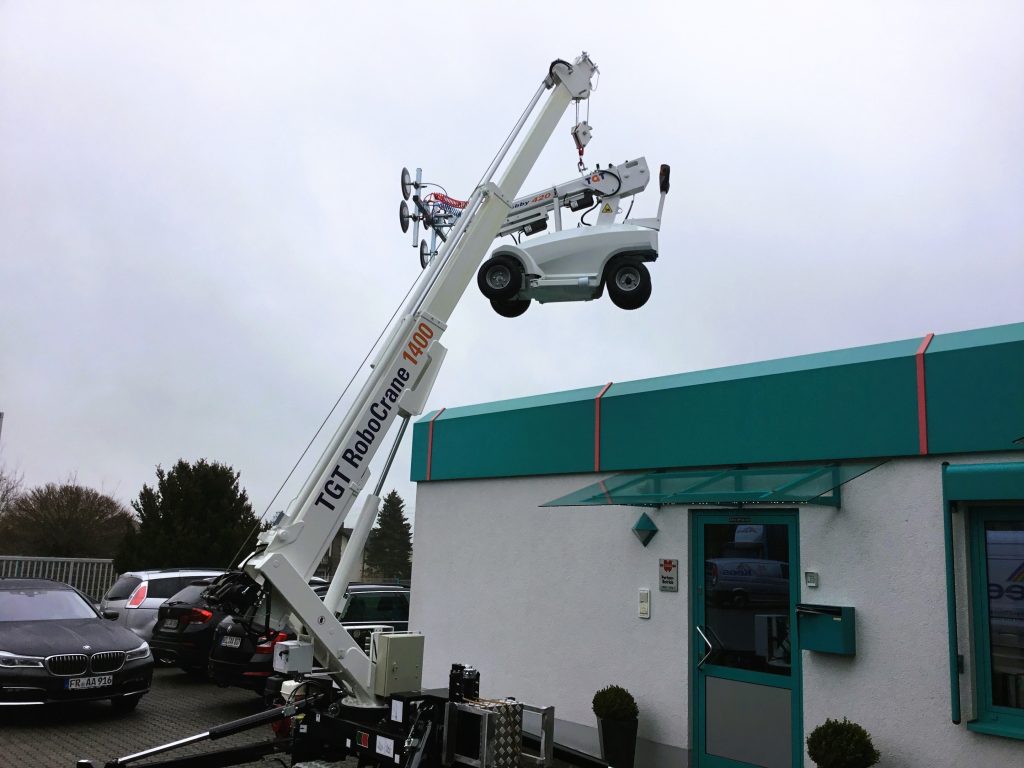

  • Our TGT RoboCrane 1400 is “two in one” Crane and glass manipulator. Equipped with a manipulator the TGT RoboCrane 1400 can rotate, tilt, move side-ways and telescope large and heavy glasses or elements to a height of nearly 10 m. The millimeter-accurate put in of elements and glasses is thereby effortlessly to do with the wireless remote.

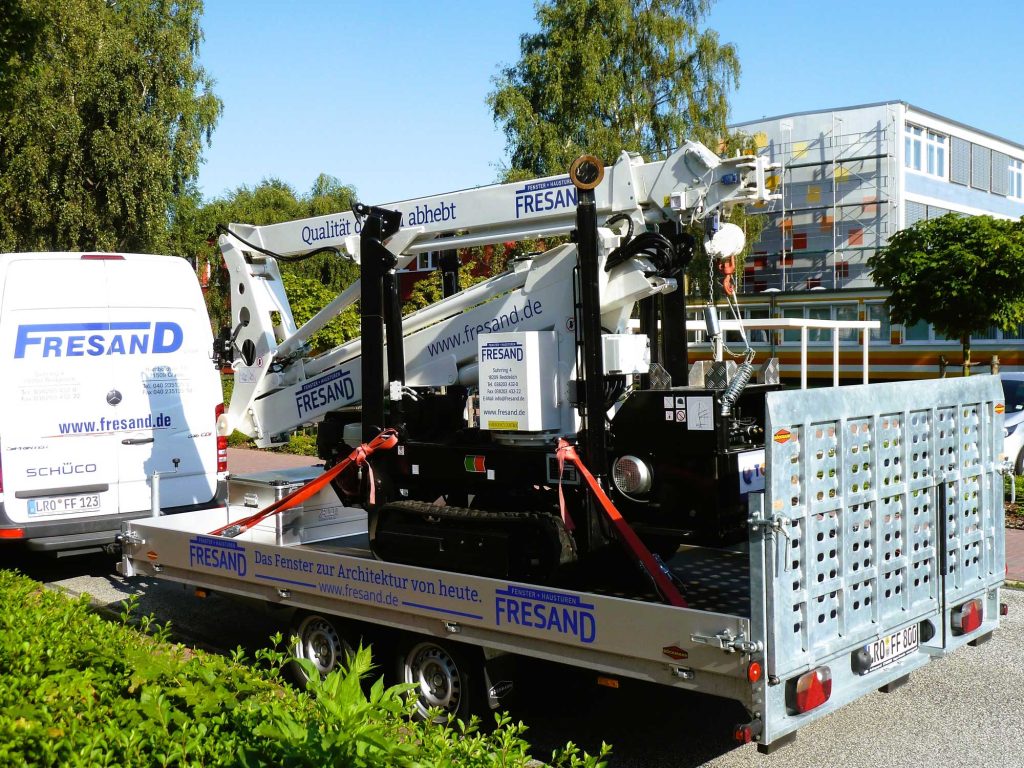

  • TGT RoboCrane 1400 installed on a crawler chassis
  • Max. Extension length: ca.10,0m
  • Lateral range app. 7,5 m
  • Range of rotation 355°
  • Line speed app. 0-12 m/min.
  • Max. Load ca. 1400 kg
  • Overall length 3000 mm
  • Length with buckling arm: 4900 mm
  • Width min. 78 mm
  • Height min. 1980 mm
  • Total weight app. 2000 kg
  • Lateral range ca.7,5 m
  • Rotation range 355°
  • Support surface 2.92 m x 3.92 m
  • Point load 1,9kN / m2
  • Ground pressure in traveling condition: about 5.52 N / cm2
  • Energy transmission chain: Inner lying
  • Drive: Honda engine 13 hp
  • Chassis adjustably 780-980 mm
  • Climbing capability forward about 36%
  • Track width approx . 0,2 m
  • Driving speed: approx 1.5 km / h
  • Additional drive: 380 AC motor 4.0 KW 16 A
  • TGT backing plates
  • 4 plates Polysthon
  • TGT rubber track
  • White, non-abrasive 2 pieces
  • Additional arm max. 2 m
  • Flyjib max. payload 1200 kg
  • Manipulator
  • Include suxtion unit 600 kg
